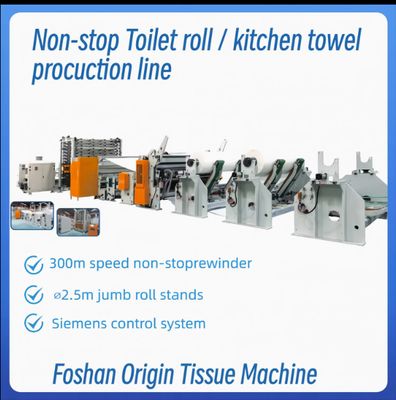

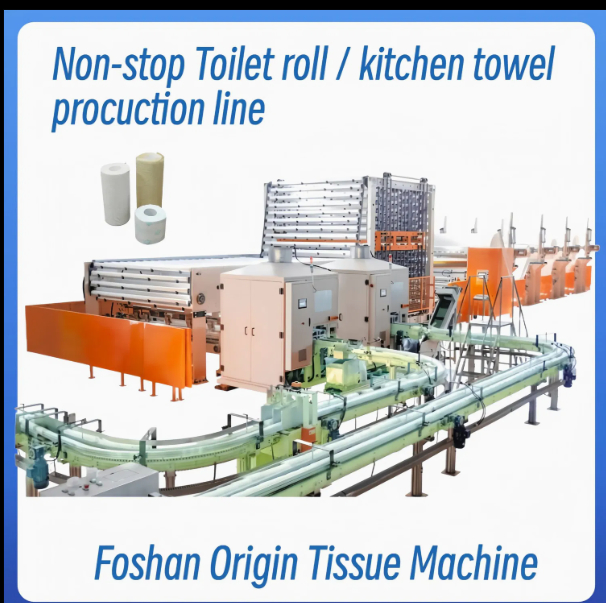

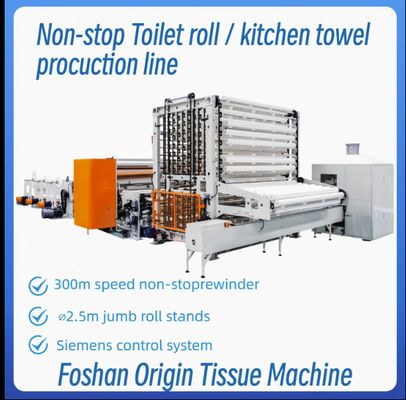

NON-STOP Fully Automatic Toilet Paper Production Line with embossing unit

Machine features:
1. Scope: Toilet roll /kitchen towel / Bed sheet roll
2. Running function: non- stop continuous rewinding
3. Running speed: 300m/min
4. Web cut-off : by perforation unit
5. Perforator is controlled by individual inverter, it guarantees the accuracy of the perforation sheet length during long-turn production.
6. Control system: Six axis motion control system
7. Optional unit: Edge-embossing,Embossing unit, Lamination unit
8. Adopts Siemens control system

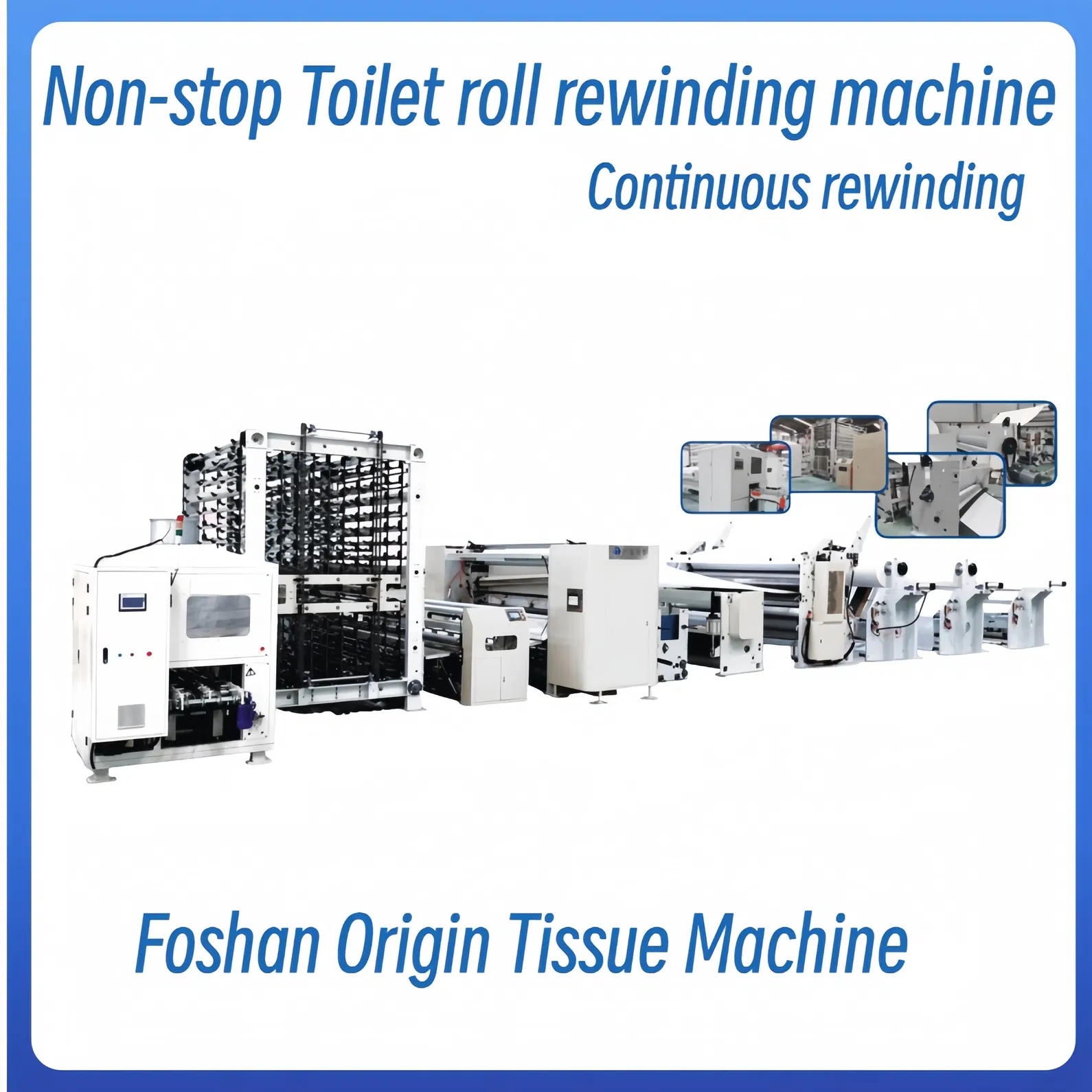

Non-stop rewinding machine

No.	Description	Parameter
1	Roller width	3000mm
1.1	Winding function	Continuous operation with non-stop log winding & discharge
1.2	Log cut off way	In-machine log end web fully cut off (by rubber plate)
2	Output log diameter	¢90-160mm
2.1	Log winding tension adjustment	Set by HMI
2.2	Log diameter adjustment	Control by servo motor
2.3	Log length adjustment	Set by HMI
2.4	Log paper core outer diameter	40mm--62mm (specified by customer)
2.5	Driving	Independent motor
3	Edge-embossing	Edge-embossing bottom roller is installed on the winding unit ( Edge-embossing wheels is an optional item)
3.1	Edge-embossing function	One full piece airbag pressurization (optional)
3.2	Edge-embossing wheel	With laser engraving pattern
3.3	Edge-embossing wheel Qty	Depends on the pattern designed
3.4	Driving	timing pulley + cone belt pulley transmission
4	Spiral perforation blade shaft	6pcs of upper perforation blades
4.1	Perforation line	Toilet paper 4:1, Kitchen paper 6:1
4.2	Perforation sheet size Tolerance	±1mm
4.3	Sheet size	Standard size 90-180mm (control by independent motor, set by HMI)
4.4	Web wrapping Auto-Shutdown System	Includes
4.5	Driving	Independent motor



Foshan Origin Machinery Co., Ltd.
Foshan Origin Machinery Co., Ltd is based in Foshan city - the China technology heart of tissue paper industry. We have been specializing for over 30 years in the design and manufacture of converting machinery for the tissue industries.
Our machinery range includes: Roll products rewinding machines, Facial tissue folding machines, Napkin machines, Pocket tissue machines, N/M fold paper towel machines, Packing machines and other related machines.
